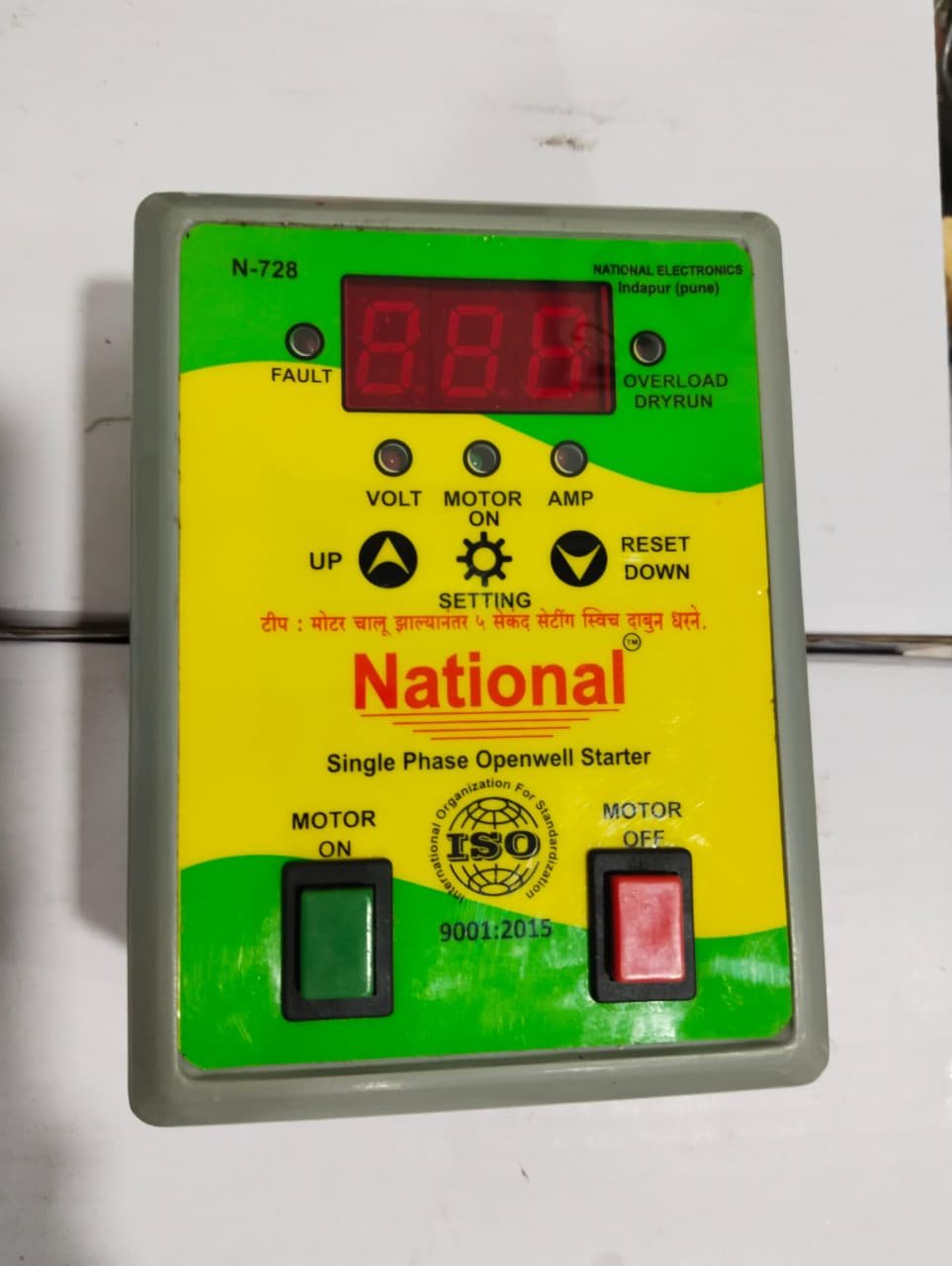

Model N-728: 1 Ph Openwell Starter
Capacity: 0.5-2 HP
Type: 1 PHASE OPENWELL STARTER
Description
Features
- Microcontroller Based Technology.
- Suitable for Submersible Pumps.
- Available for 0.5 to 3 H.P. units.
- No Volt Release. (Automatically shuts off on failure of supply).
- Protection from O/L & Dryrun.
- Separate indicators & Voltmeter / Ammeter.
- Automatic push button O/L and N/L setting.
- LED display for Each protection & Facility.
- Voltage & Current Shows continuously on LED Display one by one.
- Technical Specifications
- Operating Voltage:150 to 270 VAC, 50 Hz.
- Dry Run Trip Timing:7 Sec.
- Dry Run Setting:70% of full Load Current.
- Trip Time Delay:7 Sec.
