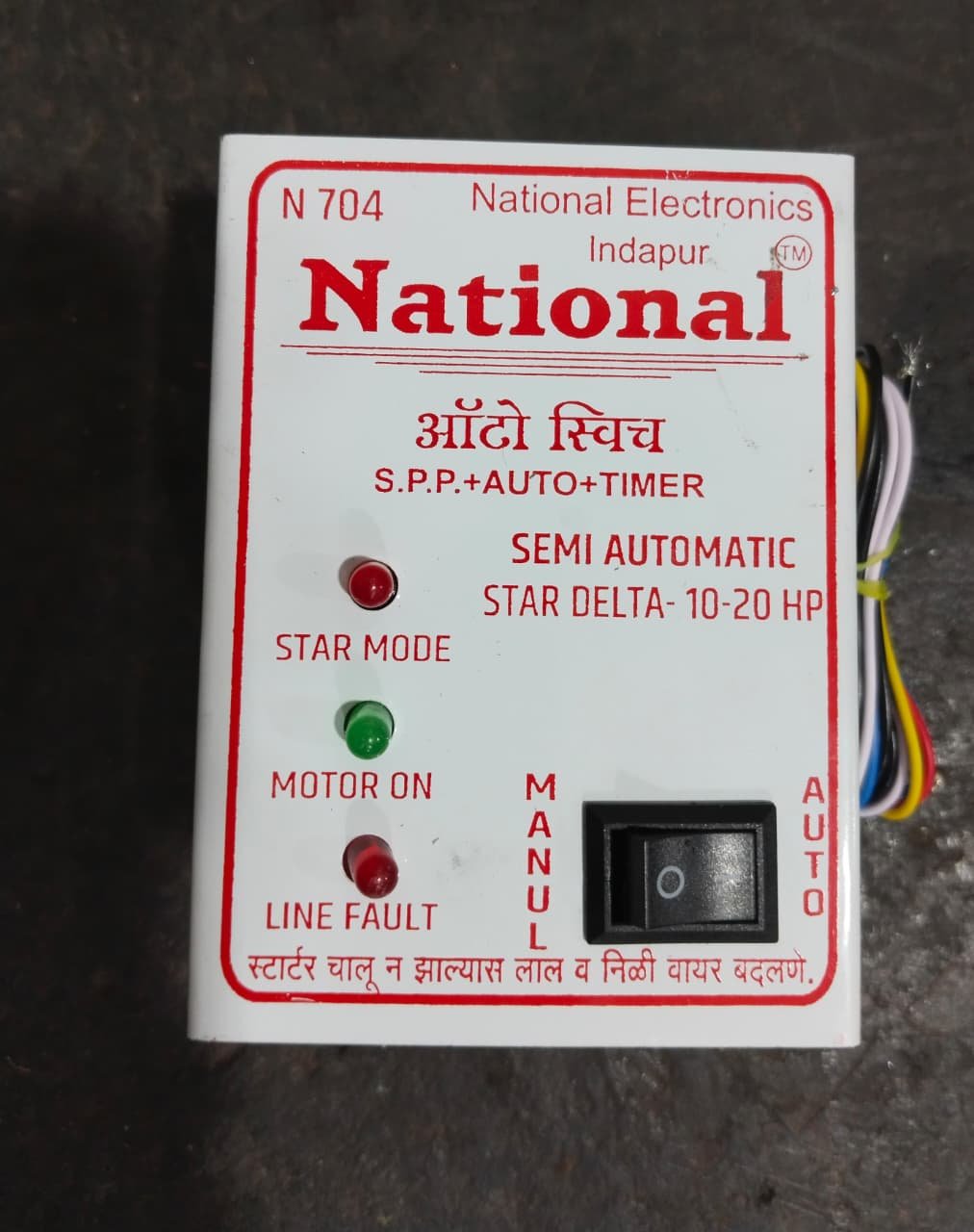

Model N-704: Semi Auto Switch
Capacity: 10-20 HP
Type: AUTOSWITCH
Description
Features
- Available in 1 Min / 3Min / 5Min.
- On single phase condition, it turn off motor.
- If there is imbalance in 3 phases, then also it will turn off motor.
- If phase reverse, then it will protect motor, it cannot allow to start motor.
- Useful for DOL starter.
- Available for Star-Delta model also.
- Voltage Range: – 180V to 470V.
- 6 Months Warranty.
Technical Specifications
- Operating voltage:220 to 460 VAC, 50Hz.
- Trip time Delay:4 sec.
- Voltage Unbalance Setting:35 Volts Phase to Phase.
